Textured Trimesh

This example demonstrates how to apply textures to a trimesh using UV mapping in Vuer. You'll learn how to load a 3D mesh, generate UV coordinates from vertex positions, and apply an image texture with optional repeat parameters.

Code Example

python

from asyncio import sleep
from pathlib import Path

import numpy as np
import trimesh

from vuer import Vuer
from vuer.events import Set
from vuer.schemas import DefaultScene, TriMesh, OrbitControls

assets_folder = Path(__file__).parent / "../../../../assets"
test_file = "static_3d/armadillo_midres.obj"

mesh = trimesh.load_mesh(assets_folder / test_file)
assert isinstance(mesh, trimesh.Trimesh)
mesh.apply_scale(1)

# from trimesh import util
with open(assets_folder / test_file, "rb") as f:
    data = f.read()
    text = trimesh.util.decode_text(data)

app = Vuer(static_root=assets_folder)

print(f"Loaded mesh with {mesh.vertices.shape} vertices and {mesh.faces.shape} faces")
xyz = np.array(mesh.vertices)
uv = xyz[:, :2]  # take the x, y coordinates
uv -= uv.min(axis=0)  # normalize the uv coordinates to 0 - 1
uv /= uv.max(axis=0)

# use `start=True` to start the app immediately
@app.spawn(start=True)
async def main(session):
    session @ Set(
        DefaultScene(
            TriMesh(
                key="trimesh",
                vertices=np.array(mesh.vertices),
                faces=np.array(mesh.faces),
                uv=uv,
                position=[0, 1.7, 0],
                materialType="phong",
                material=dict(
                    map="http://localhost:8012/workspace/images/marigold/dalle3/dalle3_rgb.jpg",
                    # mapRepeat=[2, 4],
                ),
            ),
            up=[0, 1, 0],
            bgChildren=[
                OrbitControls(key="OrbitControls")
            ],
        ),
    )

    while True:
        await sleep(0.016)

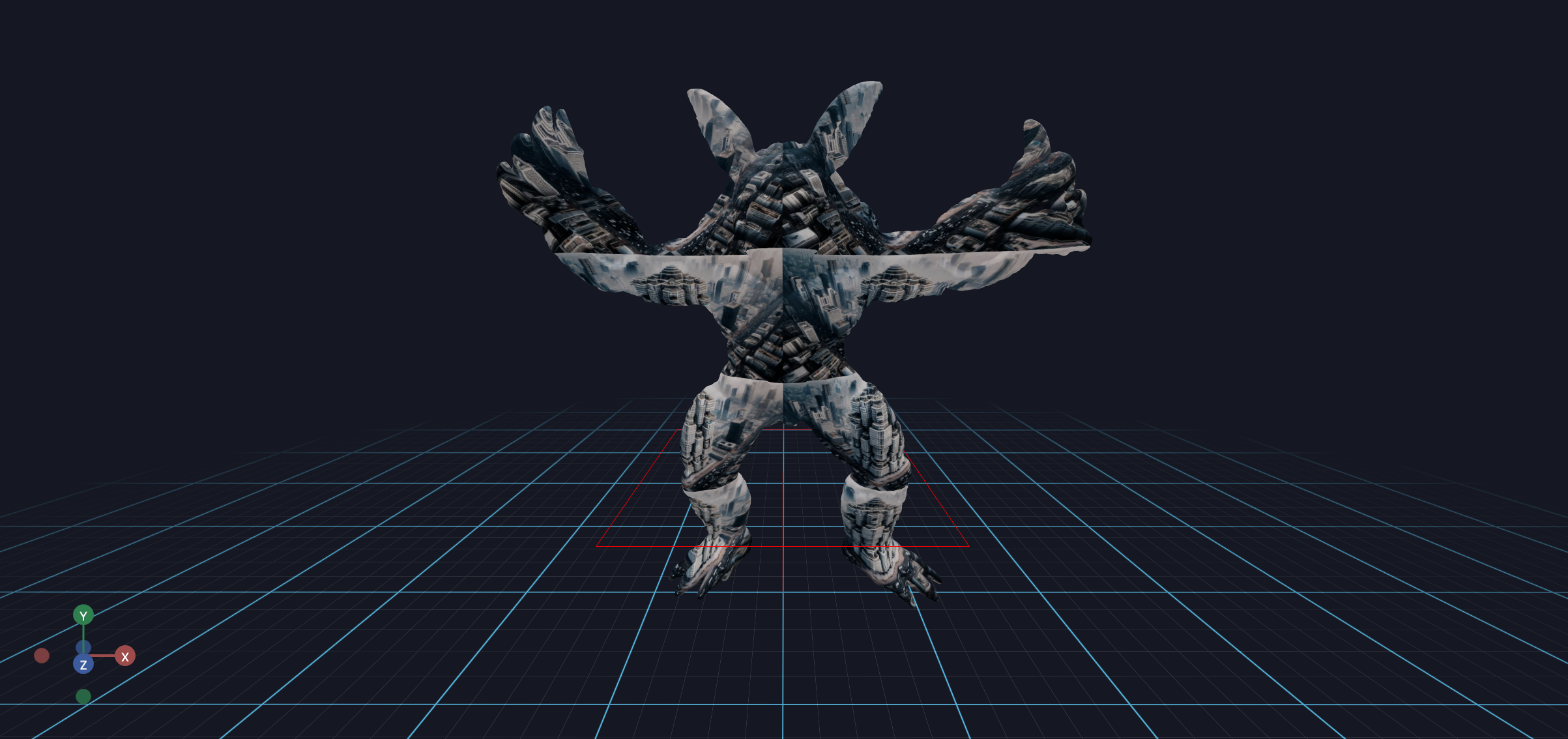

Now, by passing in a repeat parameter, you can repeat the texture on the mesh.

add mapRepeat=[2, 4] to the material dict to repeat the texture map:

python

TriMesh(
    key="trimesh",
    ...
    uv=uv,
    material=dict(
        map="http://localhost:8012/workspace/images/marigold/dalle3/dalle3_rgb.jpg",
        mapRepeat=[2, 4],
    ),
),
